Tools

Create Source Grid from Target Surface

You can choose to automatically create a flat Source Grid from any selected Target Surface. Select the Target Surface, and from the Flowify menu select Create Grid from Target Surface. This will create a grid that matches the dimensions of the edges running along and across the arget Surface.

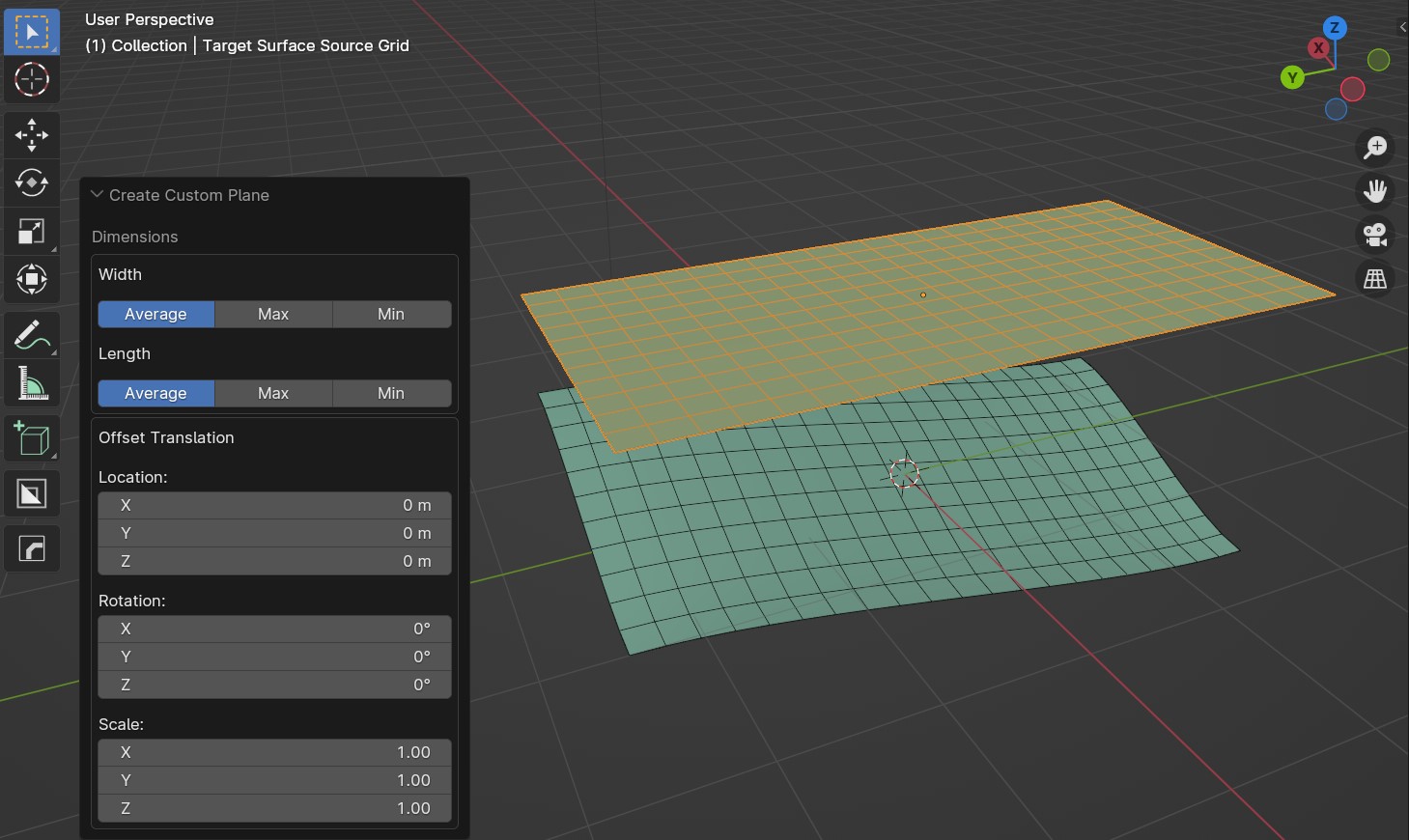

Controls

• Width/Height: This controls which calculation to use for the dimensions of the Source Grid:

  • Max: The Maximum length of the sets of edges across or down the grid.

  • Min: The Minimum length of the sets of edges across or down the grid.

  • Average: The Average length of the sets of edges across or down the grid.

• Offset Translation: By default the grid wil be created above the Target Surface. These parameters control the offset from that point.

  • Location: Offset location of grid.

  • Rotation: Offset rotation of grid.

  • Scale: Offset scale of grid.
