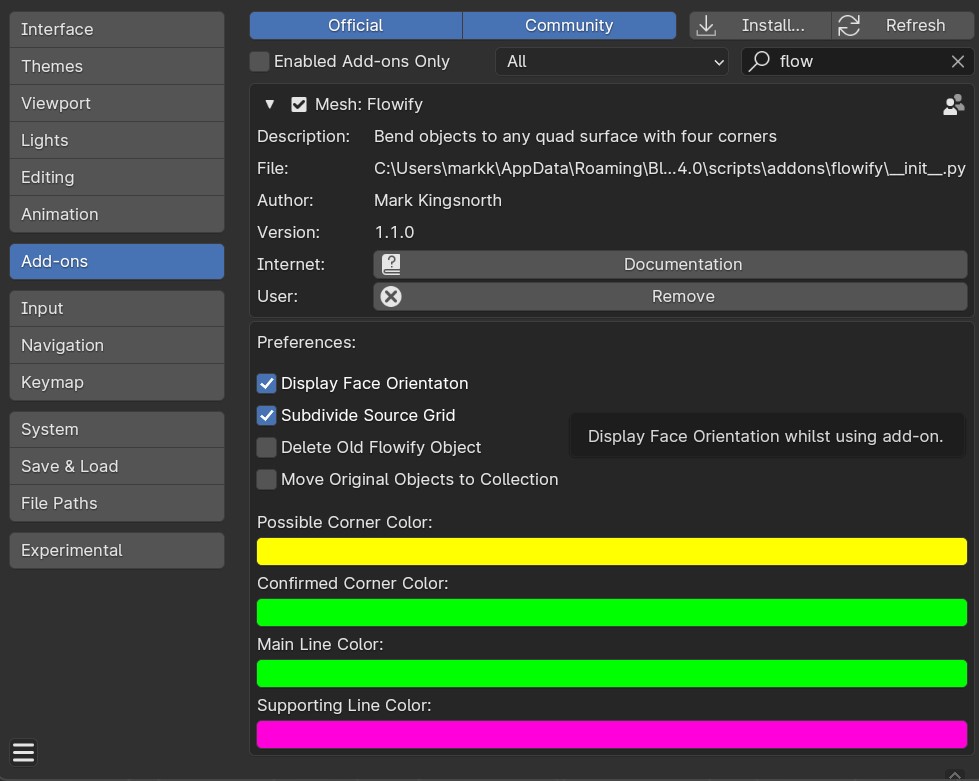

Preferences

Display Face Orientation

When running the Flowify operation, this will automatically switch the viewport to Face Orientation mode so that you can check that the blue positive face orientation of the Source Grid matches the face orientation of the Target Surface. Both matching sides should be blue.

Good and bad face orientations. Both matching sides of the source and the target surface objects should be blue for the add-on to work correctly. Red faces denote inverted faces.

Subdivide Source Grid

This will automatically subdivide the Source Grid to the same number of subdivisions at the Target Surface.

Delete old Flowify Object

When enabled the add-on will always delete the old Flowify object of the same name whilst running. If disabled the original object is retained.

Move Original Objects to Collection

Move the original set up objects into their own Flowify collection when the add-on is run so you can quickly show/hide the original objects.

Possible Source Color

The color to be used when hovering over a possible corner.

Confirmed Source Color

When a corner has been confirmed the color will change to this.

Main Line Color

The color of the main line used for matching corners.

Supporting Line Color

The color of the supporting lines between the other matching corners.
